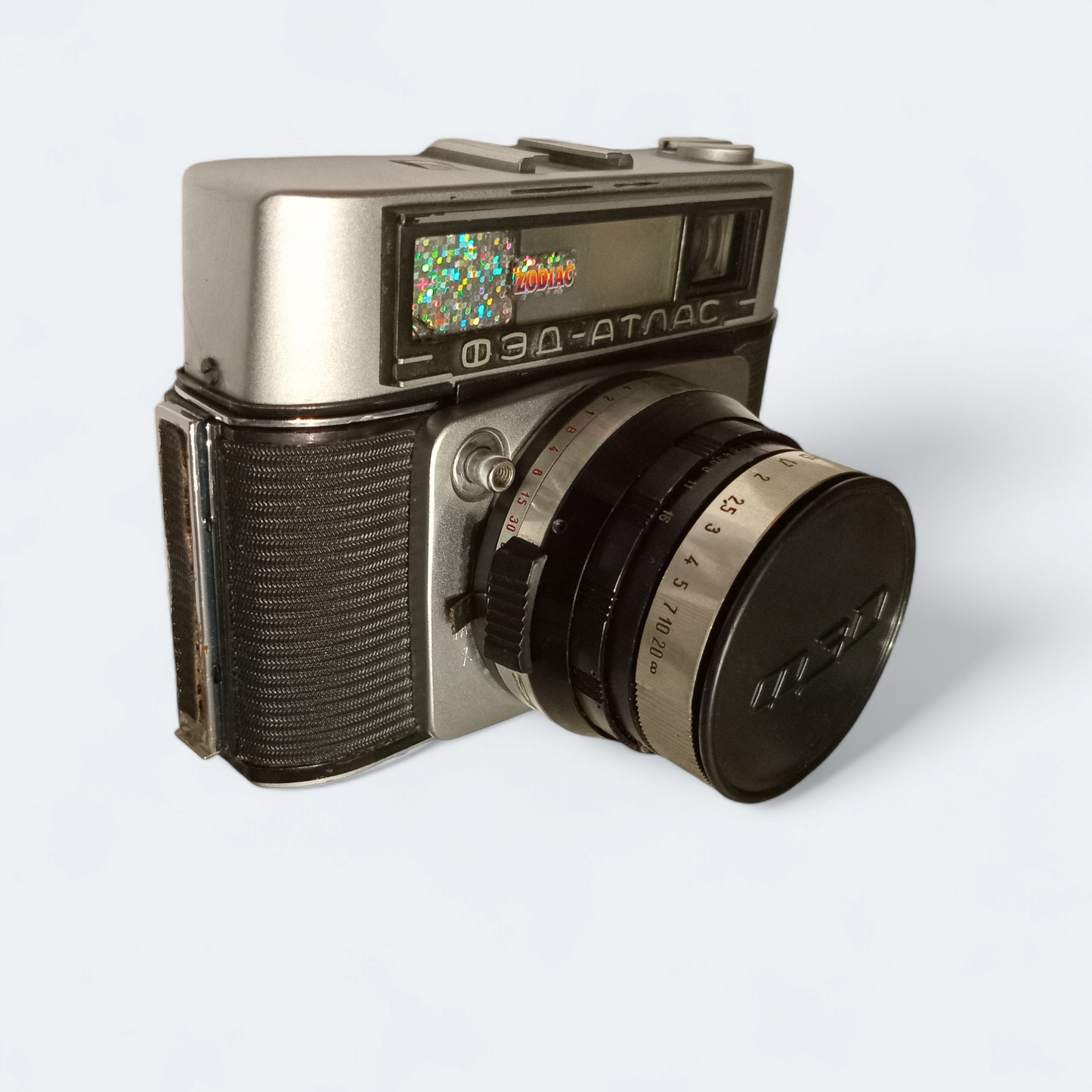

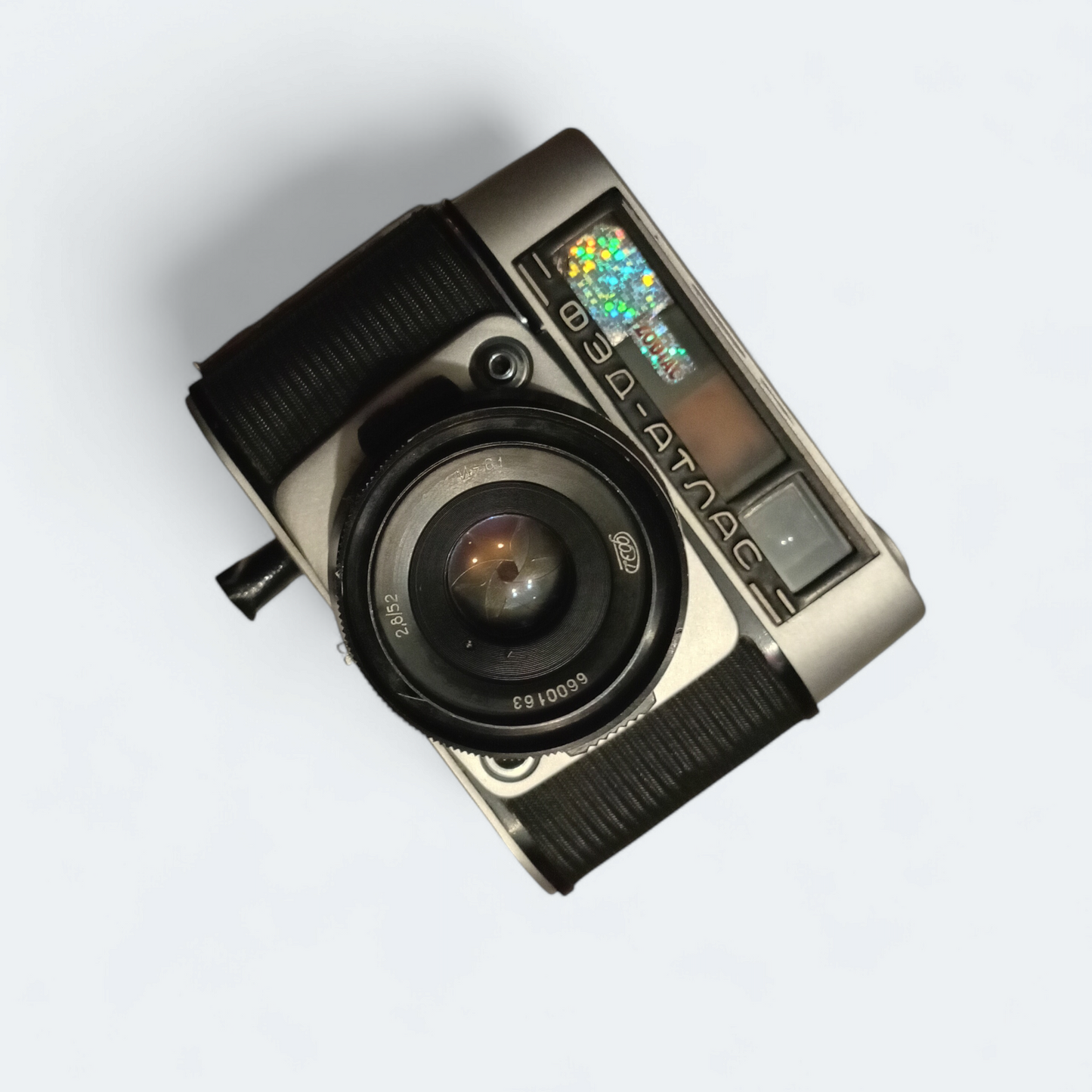

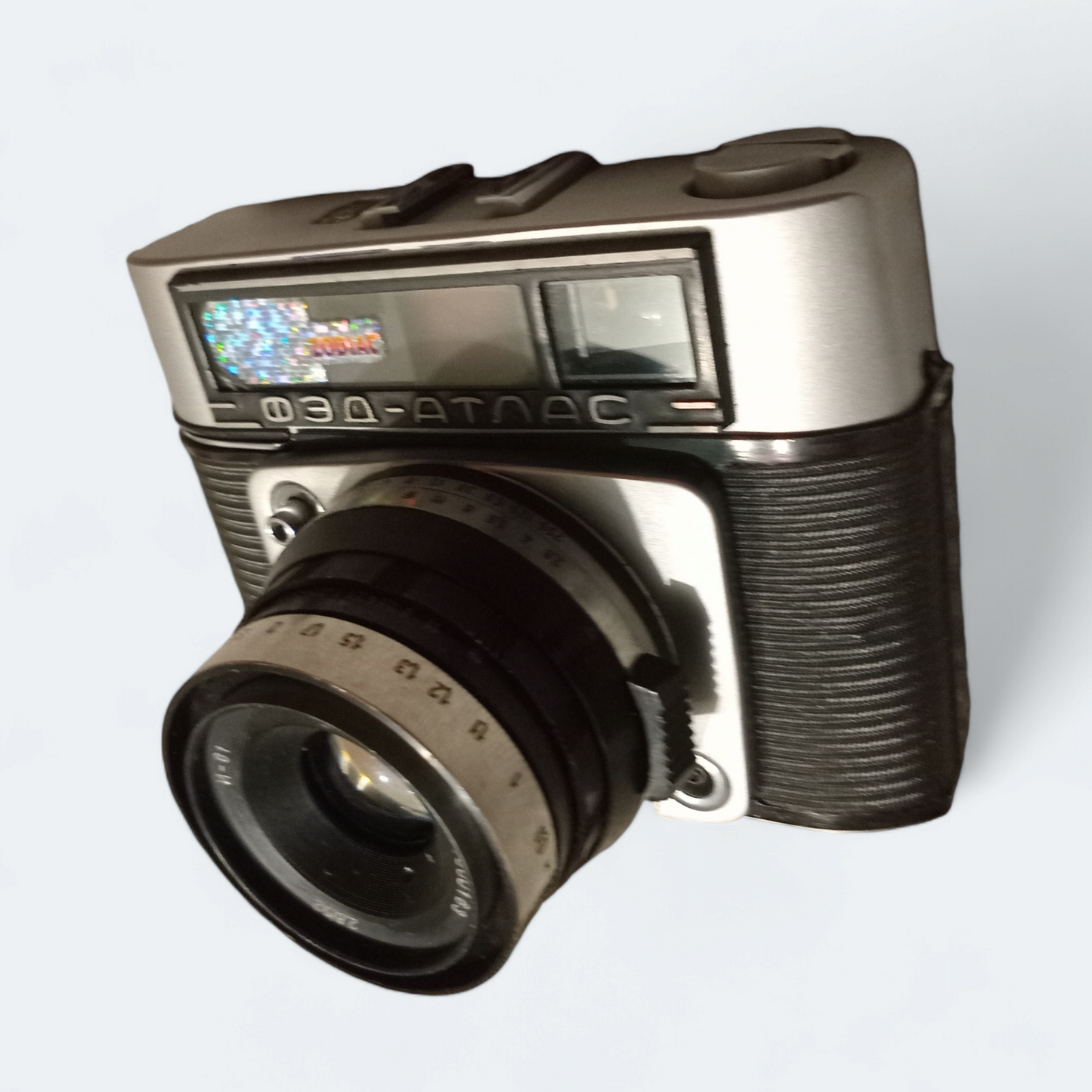

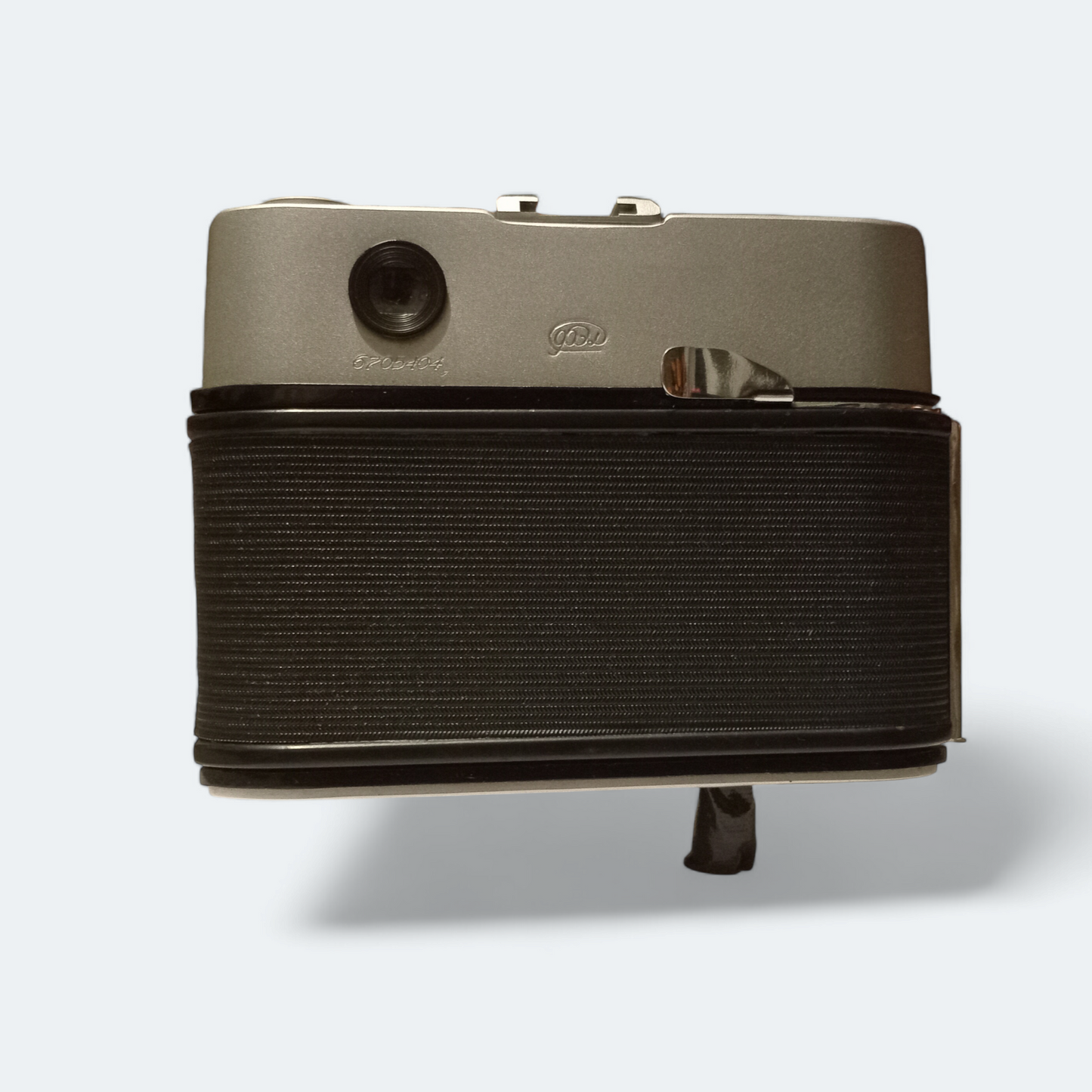

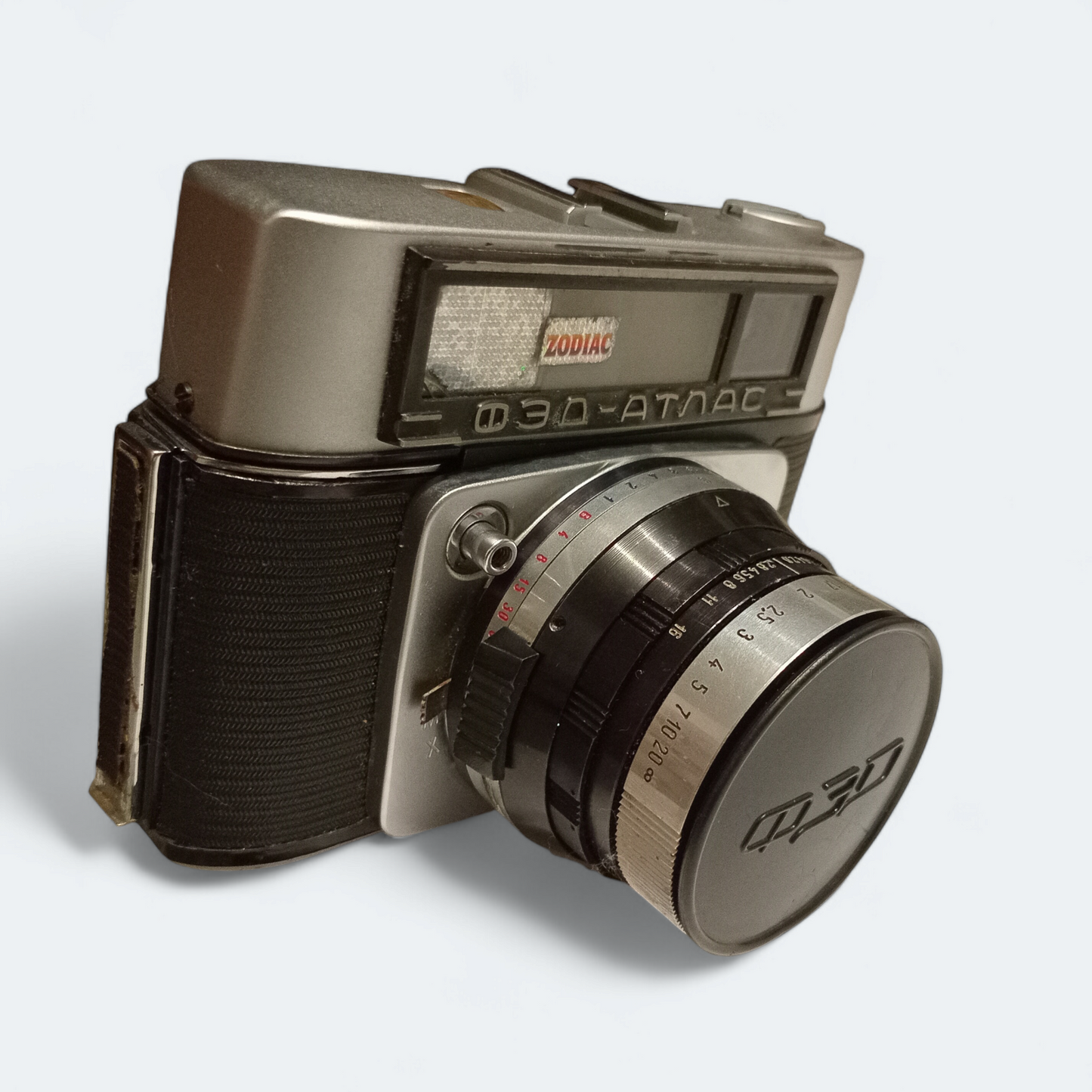

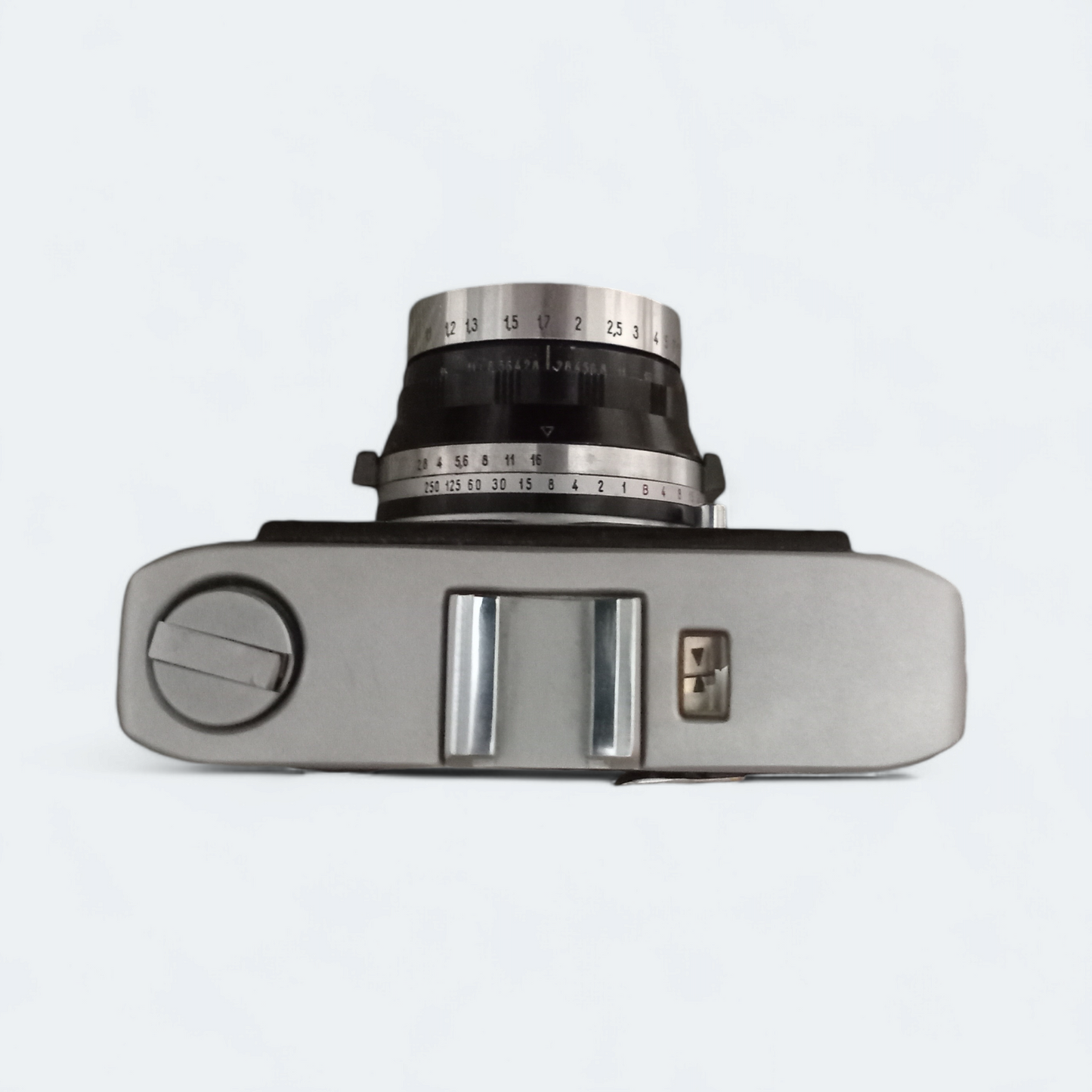

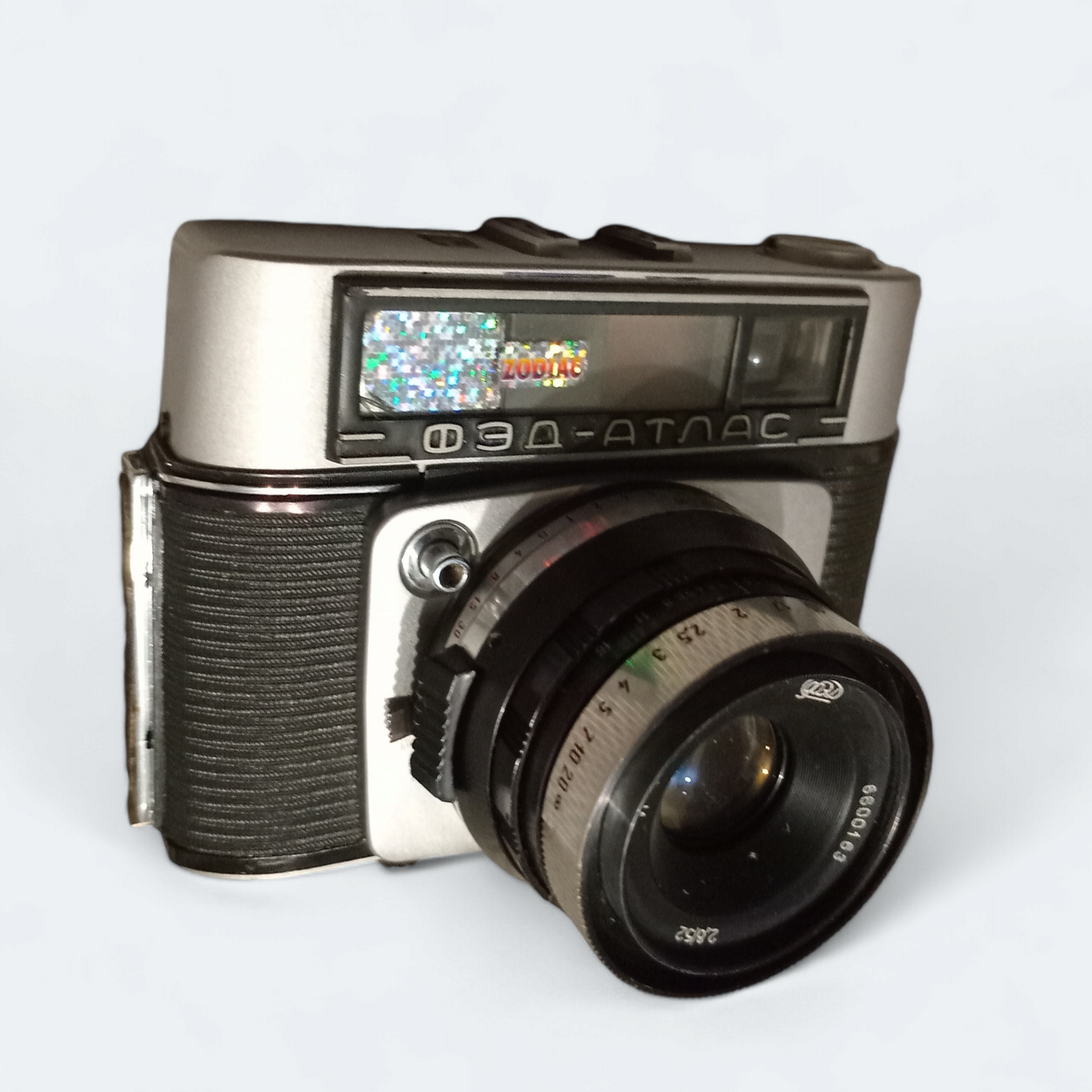

Fed Atlas Film Camera

The FED-Atlas is a 35mm film rangefinder camera manufactured by FED, with production occurring from 1966 to 1971. It represents an evolution of the FED-10 model and features a notably tall top housing that houses the viewfinder, rangefinder, and an integrated selenium light meter. Unlike the FED-10, which has a curved light meter match-needle window reminiscent of the FED 4, the Atlas is equipped with a more straightforward rectangular window that includes two arrows for aligning the meter needle. This meter display is also visible within the viewfinder.

Specifications

Lens: Industar-61 (И-61=ИНДУСТАР-61) 52mm f/2.8
Setting Mechanism: Ring coupled with speed ring featuring handles; manual operation available by pressing the unlocking knob on the lens shutter barrel adjacent to the handle
Focusing Range: 0.9m to 20m + infinity
Focusing Method: Align the rangefinder images in the viewfinder by adjusting the front ring on the lens, which includes distance and depth of field scales
Shutter Type: Leaf shutter with speeds ranging from 1 to 1/250 and a bulb setting; coupled with the aperture ring
Shutter Release: Knob located on the front of the camera, equipped with a cable release socket
Cocking Lever: Also functions to advance the film, located on the back of the top plate with a long stroke
Frame Counter: Automatic reset window on the bottom plate, advance type
Viewfinder: Coupled viewfinder/rangefinder with a bright frame; light meter arrow visible in the finder
Exposure Meter: Selenium cell
Film Speed Range: 16-250 ASA; setting lever and scale located on the bottom of the lens with a secure knob
Exposure Setting: Center the needle in the window on the top plate by adjusting the aperture/speed ring
Rewind Lever: Folding type located on the top plate
Rewind Release: Knob situated on the bottom plate
Flash PC Socket: Located on the front of the camera, with X and M sync setting lever positioned behind the lens-shutter barrel
Cold Shoe: Yes
Self-Timer: Activated by setting the X and M lever to A
Back cover: removable, opens by a latch on the right side
Body: metal; Weight: 784g
Serial number: 6705404

This camera is fully operational and represents a fantastic option for collectors. It is an attractive piece for vintage lovers and has the capacity to evoke treasured memories.
